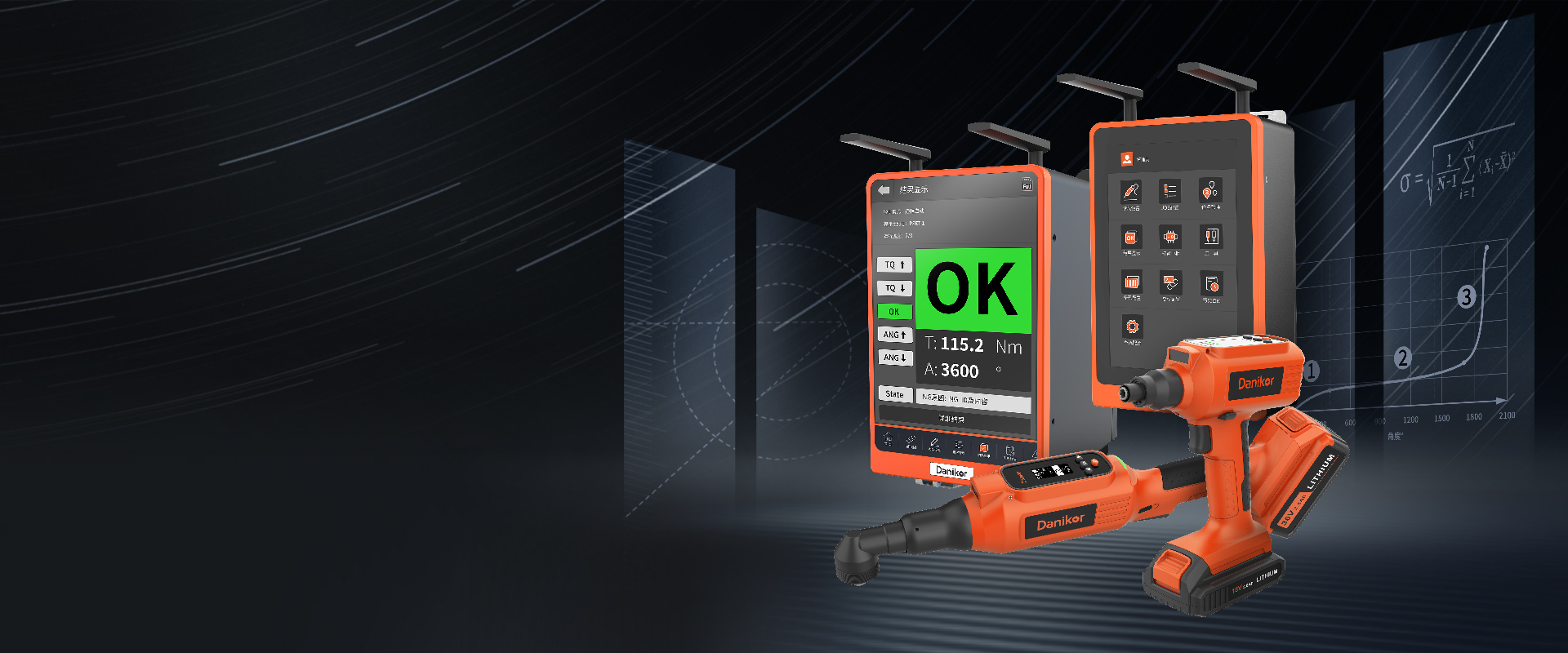

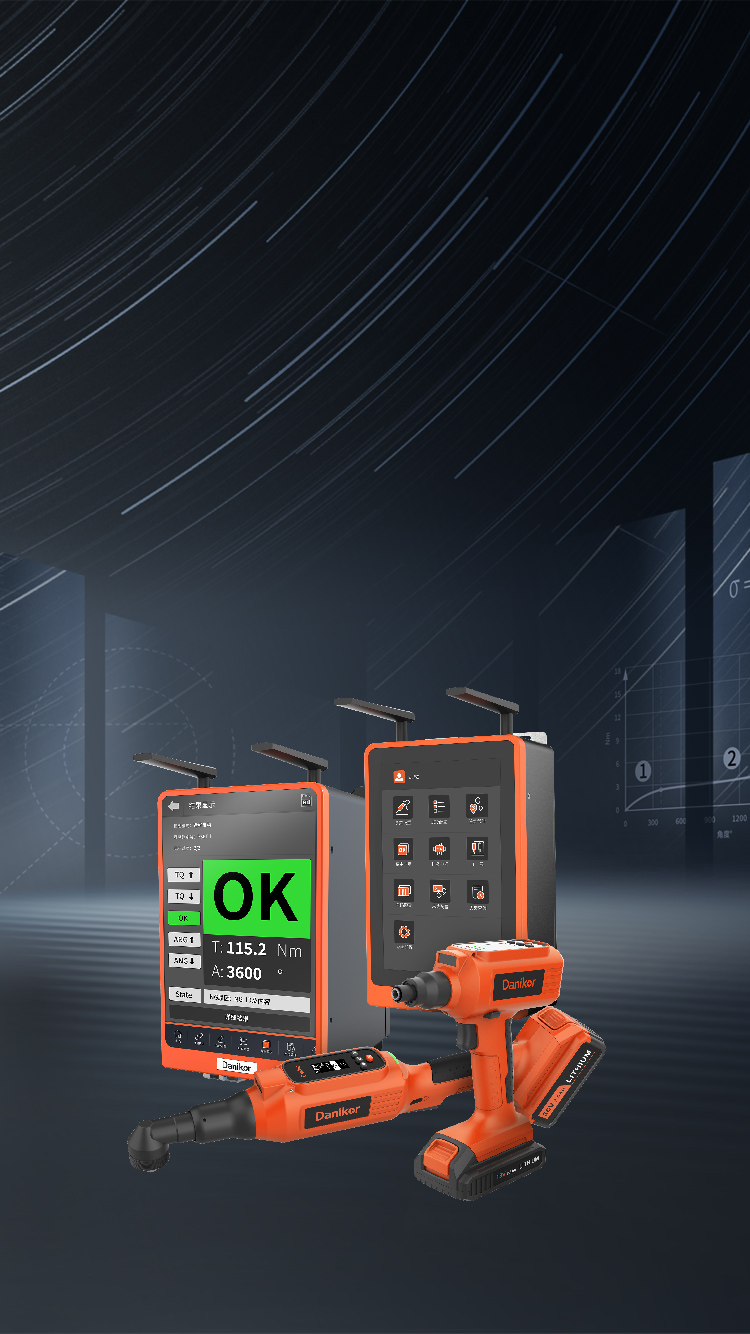

TBD Transducer Intelligent Screwdriver
Torque Range：0.4-80Nm
Wireless restraint, flexible application to a variety of tightening stations, multiple data protection system, superimposed ultra-long battery life, reduce downtime, to achieve high quality and high efficiency tightening.
Request a Quote
Product Advantages
Data worry-free fully under control
Dual power supply guarantee
Built-in battery backup ensures zero data loss when power is off or replaced
Flexibility in your choice of data protection mechanism
After the data is disconnected, the number of remaining tightening screws can be prompted, or the direct shutdown protection can be selected to ensure the integrity of data acquisition
Global monitoring
Data recording and monitoring of the full tightening process.
Durable and stable maintenance hassle-free
Long battery life
At 80% torque range, it can complete 2000 bolt tightening cycles, or 8 hours of continuous operation
power management
It is equipped with two batteries as standard, 20min fast recharging, and battery life diagnosis to ensure the efficient operation of the production line
Structural protection
t meets the industry’s 1.5m drop test standard, with stable operation and reduced maintenance costs
Intelligent interaction streamlined investment
QR code scanning integration
Equipped with code scanning function, one-click binding of workpiece/station, simplifying equipment control
Autonomous control
Built-in controller, with free program software, support independent use, direct connection to the MES system
Man-machine interaction
Equipped with 1.5-inch display, real-time view of tightening status, support Pset switching
Communication convenient efficient connectivity
Industrial connectivity
It supports the industry's common OP standard protocol to achieve rapid changeover.
Dual-mode communication
Support Wifi (2.4GHz) connection, effective coverage radius of 20m, support Bluetooth fast connection, low power consumption, strong anti-interference ability
Real-time data upload
Real-time connection with MES system.
Product structure — Pistol Type

Product Parameters

Model Max torque Nm Max Speed rpm Grip diameter mm Design Life MTTF Bit quick connector Screw driver controller
Pistol PTB-DPH-0020N-42-H1P-000-B 0.4-2 3000 42 >10million >1million HEX1/4" Internal/external
PTB-DPH-0040N-42-H1P-000-B 0.8-4 2070 42 >10million >1million HEX1/4" Internal/external
PTB-DPH-0080N-42-H1P-000-B 1.6-8 960 42 >10million >1million HEX1/4" Internal/external
PTB-DPH-0120N-42-H1P-000-B 2.4-12 690 42 >10million >1million HEX1/4" Internal/external
PTB-DPH-0200N-42-S2P-000-B 4-20 380 42 >10million >1million HEX3/8" Internal/external

Model Max torque Nm Max Speed rpm Grip diameter mm Design Life MTTF Bit quick connector Screw driver controller
Angle PTB-DAH-0060N-45-S2P-000-B 1.2-6 3000 45 >10million >1million HEX3/8" Internal/external
PTB-DAH-0100N-45-S2P-000-B 2-10 1900 45 >10million >1million HEX3/8" Internal/external
PTB-DAH-0180N-45-S2P-000-B 3.6-18 1050 45 >10million >1million HEX3/8" Internal/external
PTB-DAH-0300N-45-S2P-000-B 6-30 720 45 >10million >1million HEX3/8" Internal/external
PTB-DAH-0450N-45-S2P-000-B 9-45 450 45 >10million >1million HEX3/8" Internal/external
PTB-DAH-0800N-45-S3P-000-B 16-80 230 45 >10million >1million HEX1/2" Internal/external
